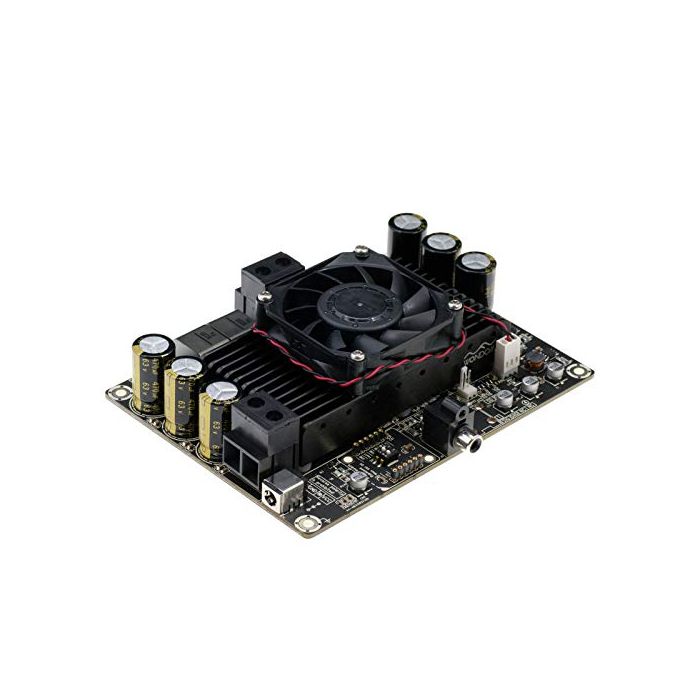

1 X 800Watt Class D Audio Amplifier Board - T-AMP

Product Resume

This mono high power audio amplifier board is able to deliver 800W into a 1.5Ohm load in 6’’ x 4.5’’ size. Giving full play to Class D topology and Sure Electronics’ T-AMP technology, this audio amplifier module achieves high efficiency up to 94% and features high audio performance with low distortion and low noise level. Easy installation, high reliability and high output power makes this audio amplifier board suitable for subwoofer, home theater, DIY audio, car audio, kiosk and demanding industrial applications. A DC24V – 46V power supply is required. High Quality Audio Performance On account of dedicated PCB layout design and engineers’ attentive debugging, this high power audio amplifier board features high audio performance, whose SNR reaches 94dB and THD+N performs well as 0.027% @ 1.5Ohm, 1W, 1kHz. High Reliability and Long Service Time To ensure sufficient heat dissipation for high stability and reliability, a low noise, temperature-controlled fan together with an optimized robust heatsink are mounted atop the amplifier board. It can work well even if in a harsh environment. Full protection circuit, like over temperature protection and overcurrent protection, is equipped on this board for high reliability and long service time. Easy for Installation Four screw holes provided make this amplifier board easy for installation and quick for integration in any cabinet. Thanks to the pre-mounted industrial terminal interfaces, all you need to do is to plug in cables for connection, without any demand of soldering, which is swift and convenient. Power and clip indicator are provided on board for customers to have an overview of the power condition of the amplifier board. Shutdown function is offered for simple control of the amplifier board. External Volume control This high power amplifier board supports WONDOM plug-in volume control module (VC01). You can adjust volume through the potentiometer board. Package Includes 1pc AA-AB31321

Features

• Output Power
• 800W @1.5Ohm 46V DC THD+N 10%
• 511W @1.5Ohm 46V DC THD+N 1%
• Power and Clip Indicator
• Support Volume Control Board (VC01)
• BTL Architecture
• Temperature Control Fan
• Over current Protection
• Optimized Heatsink Design
• Over temperature Protection
• Weight: 683g/1.51 lbs (±10%)
• Size: 6.00 x 4.50 x 1.53 inches
