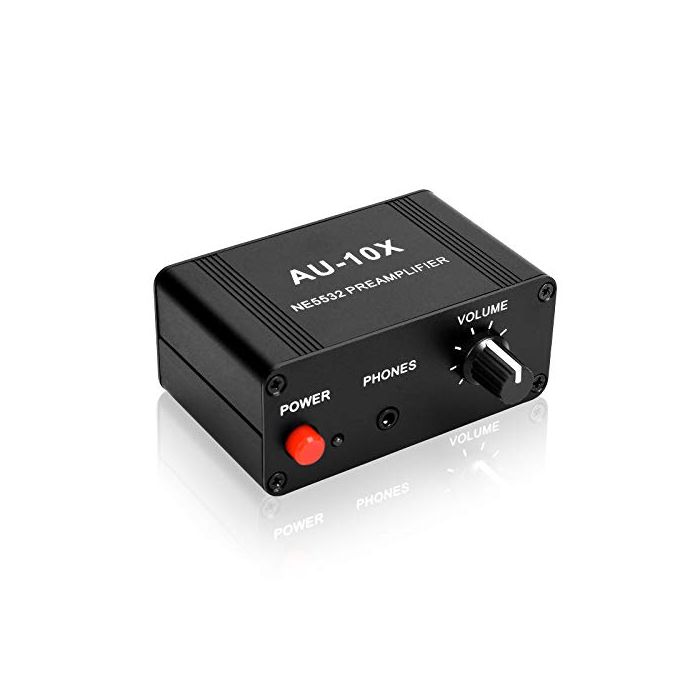

ATNEDCVH Mini small stereo audio preamplifier, Headphone amplifier, Gain 20dB phono turntable phonograph preamp, Dual op amp NE5532 with RCA 3.5mm input to RCA 3.5mm output
Product Name: Mini stereo audio preamplifierModel: PA001Input: RCA (L / R) + 3.5mmOutput: RCA (L / R) + 3.5mm + headphonesSize: 87mm / 3.42in × 50mm / 1.96in × 37mm / 1.45inPowered: DC 9-19VCompatible input devices: DVD, CD, set-top box, MP3, TV, mobile phone, computer, tablet, phono turntable, sound card, guitar, bass, electronic instrument, game console or other devices.Compatible output devices: speakers, subwoofer, sound Blaster, reverberator, AV receiver, Post-Amp, Headphones, etc.What's in the box: PA001 preamplifier * 1 pcs DC power adapter * 1 pcs
It is suitable for audio signal amplification. The amplification multiples is 10 times (20dB). It can directly drive the headphone to work (the headphone output port can't be used with other output ports at the same time), and supports the maximum headphone impedance of 16 ohm.
Using the classic Dual OP AMP NE5532, high frequency electrolytic capacitor, noise reduction circuit design, no background noise, effective gain audio, improve sound quality.
Input: RCA (L / R) + 3.5mm, Output: RCA (L / R) + 3.5mm + headphones, Poowered by DC 9-19v, static current about 8Ma. With volume adjustment knob, the volume can be adjusted freely.
Small size, easy to carry and use. Size: 87mm / 3.42in × 50mm / 1.96in × 37mm / 1.45in .
Widely compatible with all audio devices. Input: DVD, CD, set-top box, MP3, TV, mobile phone, computer, tablet, phono turntable, sound card, guitar, bass, electronic instrument, game console or other devices. Output: speakers, subwoofer, Sound Blaster, reverberator, AV receiver, Post-Amp, Headphones, etc.
