avedio links SAT/ANT Diplexer, 2 in 1 Diplexer Antenna and Satellite, TV Signal Cable TV Signal Mixer, 2 Way Coaxial Cable Diplexer Combiner, Waterproof Satellite Diplexer Splitter 5-2400 MHz
Product Description
avedio links 2 in 1 Antenna and Satellite Diplexer
Features:
1、Zinc die-cast housing,tin-plated. 2、Light weight and compact size. 3、Frequency range:5-2400 MHz.
4、F-female connector 75 Ohm. 5、DC power passing: 24VDC 500mA (MAX).
|
|
|
|
|---|---|---|
|
Antenna port: 5-860MHz; Satellite port: 950-2400MHz. Insertion Loss In- ANT: 5-862MHz ≤2.0dB, 950-2400MHz ≥20.0dB; Insertion Loss In- SAT: 5-862MHz ≥20.0dB, 950-2400MHz ≤2.0dB. Return Loss ≥8.0dB. |

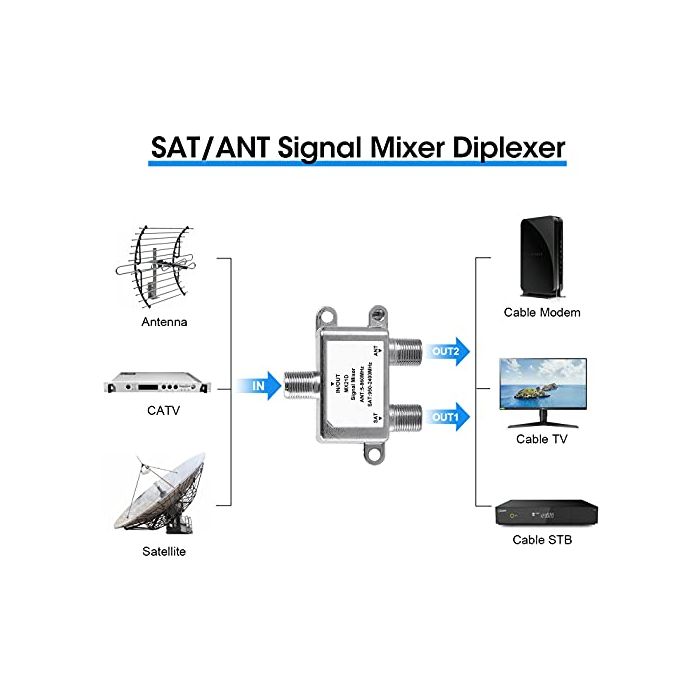

Adopts zinc die-cast housing with nickel plating TV signal mixer can allow satellite and antenna signals to be fed through a single cable. And allow to combine local TV signal with satellite signal. |
This 2 in 1 diplexer can be used for two applications: separating signals as a splitter or combing signals as a combiner. Suitable for more occasions, such as indoor, outdoor, damp, dry or humid areas. |
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|
