● 1×HDMI input, 1×HDMI loop out, 1×Analog audio input ● Support H.265/ H.264 stream encode protocol, up to 1080p60hz ● Dual-stream (main stream and sub stream) ● RTSP, RTP, RTMPS, RTMP, HTTP, UDP, SRT, unicast and multicast ● Video and audio streaming or single audio streaming ● Image and text overlay ● Mirror image & upside-down image ● Live stream with no need for connecting a computer

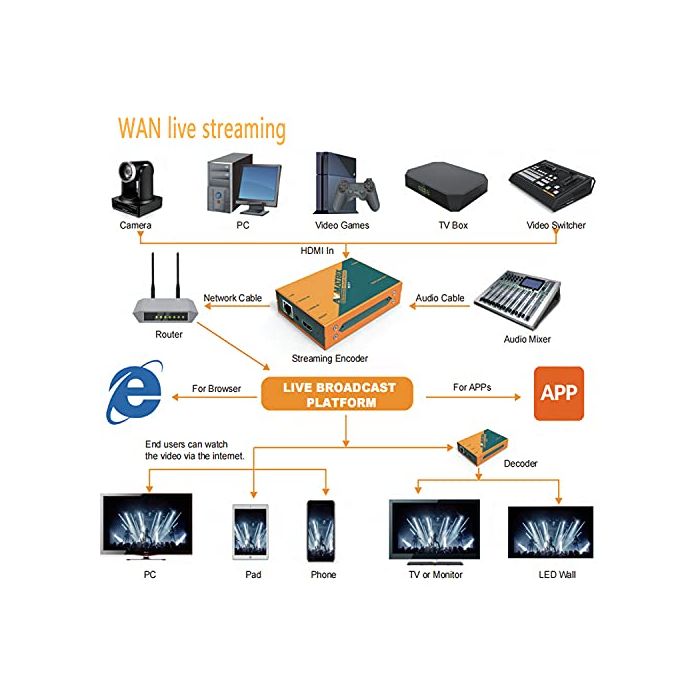

1,【Live stream with no need for connecting a computer】 Innovative Product with Leading Technology - This URayCoder video encoder is ideal for broadcast video and audio, support live broadcast for Youtube, Facebook, Ustream, Livestream, Twitch, Meridix, Streamspot, Dacast, Tikilive, Netrmedi etc.
2,SC1217 HDMI encoder is an Ultra High Definition(UHD) video encoding device . HDMI video sources can be encoded and compressed over a wired network, to realize long-distance transmission and live broadcast for UHD video in network WAN and LAN
3,【Ultra high definition, lower bit rate, lower latency video transmission】 support H.264 and advanced H.265 encoding technology, lower coding rate can be achieved. It can also transmit UHD video on low bandwidth network which can greatly save your network flow. Slice encoding technology ensures lower latency at the encoding side.Supports up to 1080P60fps resolution.Wider adjustable code rate from 16kbit/s to 60MKbit/s.
4,【Multi-protocol Supporting】 SC1217 HDMI encoder is Powerful streaming media service function.Support HTTP/RTSP/RTMPS/RTMP/RTP/UDP/ONVIF unicast and multicast protocol, Compatible with all major streaming video platforms. SRT supported to ensure secure and reliable transmission. Dual stream output, the main stream code rate can be up to 1080P60HZ, and the sub-stream supports 720p60HZ video encoding and customization available.
5,【Portable size, image and characters overlay supported with audio etc】 Portable and low power consumption makes it 24 hours continuous working available.Capable with customized text and image overlay function, which can be at any position on the screen.Audio embedding encoding supported.
