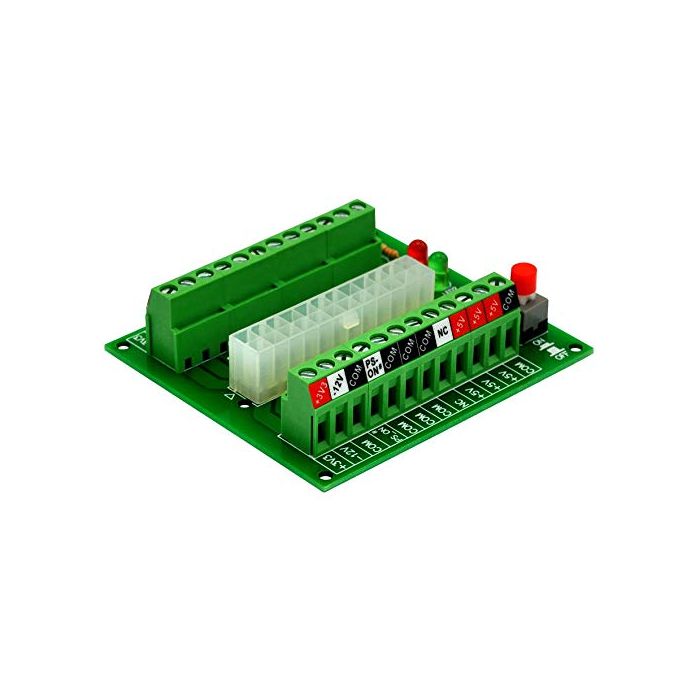

Electronics-Salon 24/20-pins ATX DC Power Supply Breakout Board.24-pins Standard ATX Connector, support 20 / 20+4 / 24 pins wire header. Stand-By and Power-ON indicator LEDs. With latching button switch to control power ON/OFF. High quality 24Amp(per position) screw terminal blocks.Terminal Block: Pitch 5.0mm/0.197" Wire range 26AWG ~ 12AWG / 2.5mm2 Rated voltage 400V, rated current 24Amp. Strip length 7mm. Screws - M3,steel,Cr3+ Zn plated. Pin header and Cage - Brass.
24-pins Standard ATX Connector, support 20 / 20+4 / 24 pins wire header.
Stand-By and Power-ON indicator LEDs.
With latching button switch to control power ON/OFF.
High quality 24Amp(per position) screw terminal blocks.
