Features ： General protection: each output has independent PTC fuse and LED indicator, when problem occurs, only affect the independent output, other outputs still working. Circuit short protection: when short condition occurs, independent PTC fuse will open the circuit,when condition removed, PTC fuse will automatically back to close. High voltage protection: when high voltage occurs, the surge protection will be hit through to protect the connected device. Over Current protection: when over current occurs, the power supply will automatically switch to self-protection status, when condition removed, then switch back to normal. Application ： CCTV Camera, PTZ, IR Illuminator, Video Processor， Access Control , etc. Specfication: Model:CP2418-10A Input Voltage:AC 110V or 220V, 60Hz or 50Hz Output Voltage:AC24V Total Output Current:10A Total Output Channel:18CH Fuse type:PTC Resettable Fuse Rating:1.1A Efficiency:>=70% Storage Temperature:-40—85℃ Operating Temperature:-20—60℃ Product Net Weight:3.79kg Product Dimension:206.4*242.3*84.8mm Package Dimension:213*252*94mm Certificate:CE,FCC Warranty:2 Year

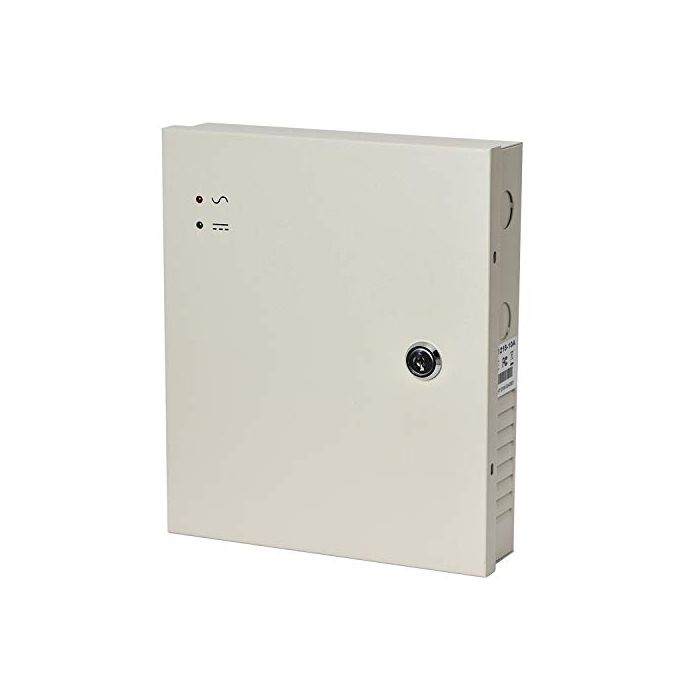

Input: 100-240VAC; Output: 24V AC ; Supply Current: 10Amp; Max. Amp: 2Amp/Channel; AC24V Regulator CCTV Power Supply Box, 18 Outputs with PTC Fuse
General protection: each output has independent PTC fuse and LED indicator, Lightning Protection, Life Time＞ 100000 hours, when problem occurs, only affect the independent output, other outputs still working.
Circuit short protection: when short condition occurs, independent PTC fuse will open the circuit,when condition removed, PTC fuse will automatically back to close. High voltage protection: when high voltage occurs, the surge protection will be hit through to protect the connected device.
Over Current protection: when over current occurs, the power supply will automatically switch to self-protection status, when condition removed, then switch back to normal.
New Metal housing, Compressive, Wear-resisting Reinforcement Enclosure Structure,Use more Safety and Convenience, Lock with keys and AC Plug are included
