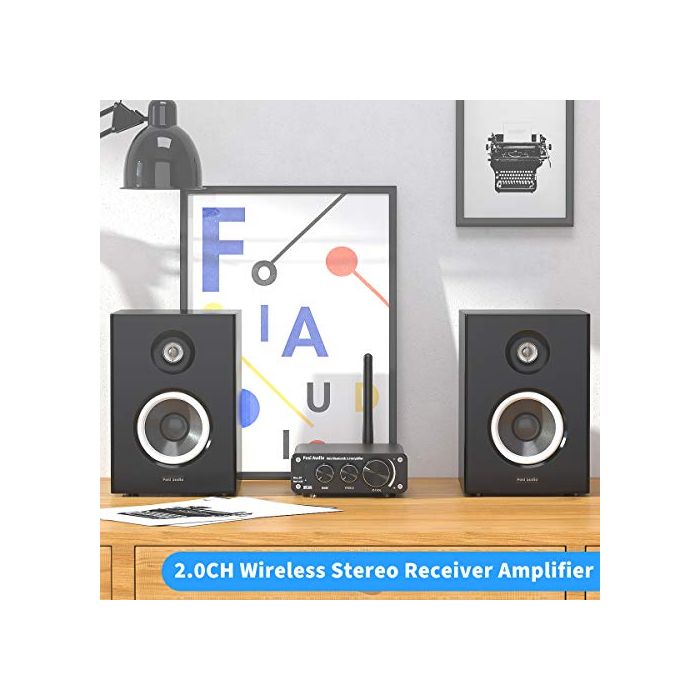

Fosi Audio BT10A Bluetooth 5.0 Stereo Audio Amplifier Receiver 2 Channel Class D Mini Hi-Fi Integrated Amp for Home Passive Speakers 50W x 2 TPA3116
From the brand
Home Audio Amplifier System
A perfect gift for the music lover in the life!
Product Description
Our Story
Fosi Audio was founded with a simple goal: Build products that sound great and make people want to listen to music every day. We design, manufacture, and sell many Hi-Fi audio products on the market. We pursue your perfect music journey. Enjoy Hi-Fi music with Fosi Audio audio products NOW!
Bluetooth 5.0 Mini Hi-Fi Amplifier
Product Parameters:
- Power Adapter: 19V/4.74A
- DC Input Range: 15-24V
- Terminating Impedance: 2 Ohm - 8 Ohm
- MAX Power Output: 50W x 2
- THD: ≤ 0.04%;
- Frequency Range: 20Hz - 20kHz (±1 dB)
- SNR: ≥ 98dB
- Input Sensitivity ≤ 280mV
- Input Mode: Bluetooth and 3.5mm AUX
- Bluetooth Transmission Distance: Up to 50ft(15m)
- With bass and treble control, adjust the sound in your need;
- Bluetooth 5.0 streaming range up to 50ft(15m);
- Texas Instruments 3116D2 Amp chip to ensure Hi-Fi sound quality;
- Supplied Accessories: Amplifier, 19V 4.74A Power supply, AC power cord, Manual;
|
|
|
|
|
|---|---|---|---|
Bluetooth 5.0 Compatible
|
Bass and Treble Control
|
Mini but Powerful
|
NO Sparks
|
How to use BT10A amplifier?
- Step 1 - Connecting the Speaker Wire
- BT10A accept bare wire, banana plugs, spade lugs, or pin terminators. Please turn off the amplifier before connecting to the speakers.
- Step 2 – Connecting the Power Supply
- Be sure that the volume/power switch on the front panel is in the OFF position before connecting the power supply.NOTE: Please plug the power cord into the amp THEN the AC outlet.
- Step 3 – Operation
- Turn on the BT10A volume/power knob and set the volume control to an initial setting of about 9 o’clock. Turn on your audio input source and adjust the volume to your desired listening level.
Bluetooth Connection
- The Bluetooth name is Q3003, please volume-down before Bluetooth connects.
- You can pair with your Bluetooth device when the amp power on.
- If Bluetooth connects, playback from the physical 3.5mm AUX input is interrupted.
- You need to turn off the Bluetooth from your device if you use AUX input when Bluetooth pairing;
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| BT10A | BT20A | BT30A | BT30D | BL20A | BL20C | |
| Type | Bluetooth 2.0 CH Amp | Bluetooth 2.0 CH Amp | Bluetooth 2.1 CH Amp | Bluetooth 2.1 CH Amp | Bluetooth 2.1 CH Amp with Remote Control | Bluetooth 2.1 CH Amp |
| MAX Power Output | 50W x 2 | 100W x 2 | 50W x 2+100W | 50W x 2+100W | 100W x 2 | 160W x 2 |
| Input | Bluetooth + 3.5mm AUX | Bluetooth + RCA | Bluetooth + RCA | Bluetooth + RCA | Bluetooth + 3.5mm AUX + U-disk | Bluetooth + RCA + U-disk |
| Output | Passive Speakers | Passive Speakers | Passive Speakers + Passive Subwoofer | Passive Speakers+Active/Passive Subwoofer | Passive Speakers + Active Speakers/Amplifier/Active Subwoofer | Passive Speakers + Active Subwoofer |
| Treble & Bass Control | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| THD | ≤ 0.04% | ≤ 0.04% | ≤ 0.04% | ≤ 0.04% | ≤ 0.001% | ≤ 0.05% |
| SNR | ≥ 98dB | ≥ 98dB | ≥ 98dB | ≥ 98dB | ≥ 92dB | ≥ 98dB |
| Terminating Impedance | 2-8 Ohm | 2-8 Ohm | 2-8 Ohm | 2-8 Ohm | 2-8 Ohm | 2-8 Ohm |
| Power Adapter | 19V/4.74A | 24V/4.5A | 24V/4.5A | 24V/4.5A | 24V/4.5A | 24V/4.5A |
| Work Voltage | AC 110V - 240V | AC 110V - 240V | AC 110V - 240V | AC 110V - 240V | AC 110V - 240V | AC 110V - 240V |
