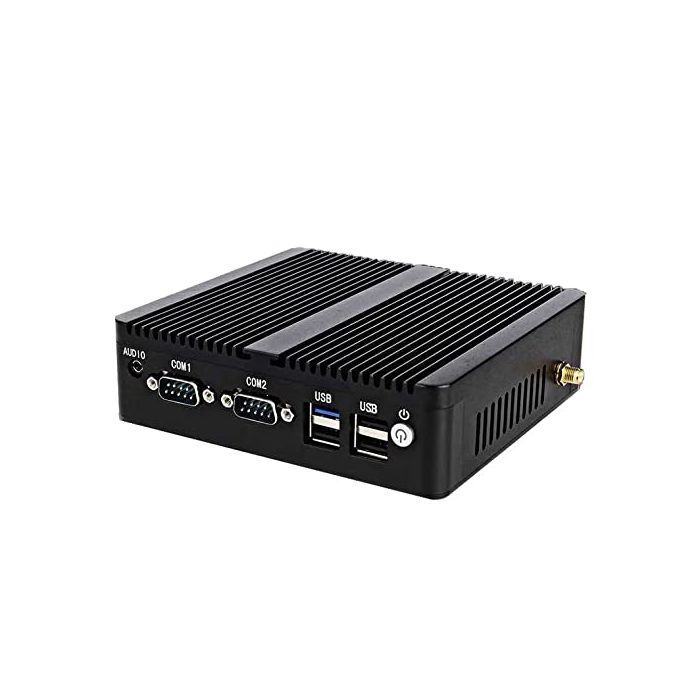

Model:Mi3710B Item Dimension:155 x 127 x 48 mm CPU: Intel Celeron Processor J3710 ,2M Cache, 1.60 GHz,up to 2.64 GHz,Braswell, TDP 6.5W AES-NI:YES Operating Temp: -10~50 Degrees Celsius Non-Operating Temp: -20~80 Degrees Celsius Hard Disk: Support 1 x Mini-PCIe for mSATA SSD and 1 x 2.5" SATA SSD/HDD(2.5" SATA cable included) Memory:Support 1 x DDR3L SO-DIMM Socket, 1.35V 1333/1600MHz, Up to 8G WiFi: Support 1 x Half-length Mini-PCIe for Wi-Fi Module, 1 x M.2 Slot for Wi-Fi Module. LAN:2 x Realtek RTL8111E Gigabit LAN 1 x SIM card slot 1 x GPIO(1 x 2.0 Pitch Header) 1 x Automatically Boot Jumper Front I/O: 1 x Power on/off Button 1 x COM(RS-232) 2 x USB 2.0 2 x USB 3.0 Rear I/O: 1 x 12V DC Input 2 x HD Video 1 x DP 2 x USB 3.0 2 x RJ-45 Port for Gigabit LAN 1 x Line-Out 1 x Mic-In 3 x COM(RS-232) OS: Mini PC will come with windows 7(unactivated) for test. Support Windows 7,Windows 8, windows 10, Linux F11 key boot from USB Drive, Delete key enter into BIOS. Support restore from AC Power Loss Warranty: 1) Warranty is one year . 2) Customization or printed logo can be acceptable. Packing: 1 x Mini PC 1 x Power supply: 12V 3A adapter and US/UK/EU plug 1 x VESA bracket & screws 2 x Antennas (If you choose Wi-Fi) 1 x Packing box
2 x Realtek RTL8111E Gigabit LAN, 2x USB 2.0, 4x USB 3.0, 4x COM(RS232) ,2x HD Video,1xDP
Simple connections. Easy maintenance,Unique shell design and energy efficient components make cooling faster and more efficient. We give away a mounting bracket in the package that can be easily fixed to the back of the monitor for saving a lot of space
Smart Design, Fanless, Running 24/7,Metal Case, Silent working, High Speed CPU and SSD, 1 Year Warranty, LIFETIME technical support, uninterrupted professional service on line
