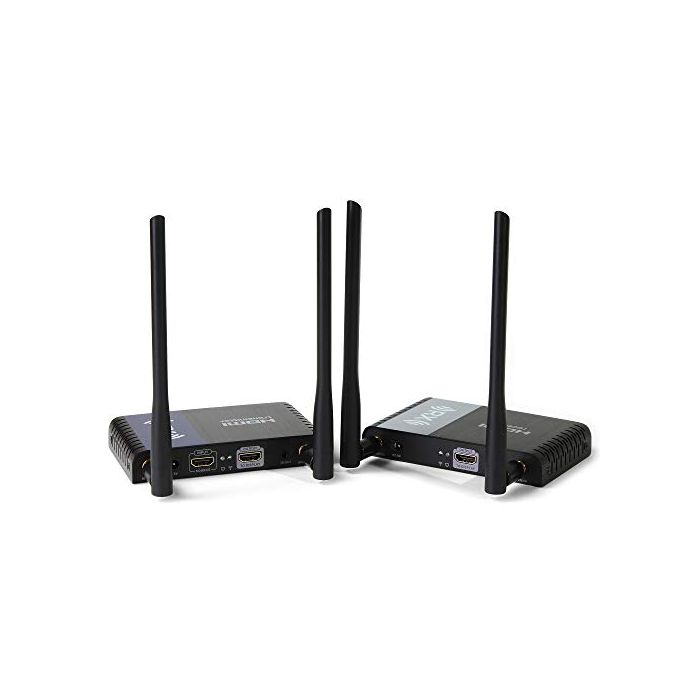

Micca Wireless HDMI Extender 1080P Full HD 330ft Line-of-Sight Long Range 5GHz Transmitter and Receiver with Integrated HDMI Splitter and IR Pass-Back
Product Description
Micca 1080P Wireless HDMI Extender Kit
The perfect solution for sending high quality video and audio up to 330ft without wires. No complicated setup or configuration, simply plug it in and it works!
IMPORTANT: If multiple sets of the Micca wireless HDMI transmitter and receiver are installed near each other, only powered on one set at a time to prevent signal crossing.
|
|
|
|
|---|---|---|
|
Advanced signal processing preserves optimal video quality that is exceptionally accurate, with sharp image, smooth frame rate, and vibrant colors. Video resolution supported up to 1080P@60Hz. Audio support is PCM only. NOTE: Dolby and DTS not supported. |
Dual antenna design and 5GHz frequency band achieves superior signal strength, noise rejection, and reduced interference. Maximum range of up to 330ft clear line-of-sight. Note: Indoor range is reduced due to doors, walls, and other radio devices. Latency: between 0.07 to 0.2 seconds |
Easy to understand connections and status lights, all clearly marked with their functions. The transmitter module has HDMI signal pass-through function, which can send the video and audio signal to a nearby HDMI display device - perfect for monitoring! |
|
|
|
|
|---|---|---|
|
Built-in IR signal pass-back function relays remote control commands back to playback source. Compatible with all remote controls using standard 20-60kHz signal frequencies. IR signal receiver and blaster cables are included! |
Built to last with durable all metal case construction that protects the delicate internal circuits and components. Plenty of cooling vents help reduce temperature during use to promote long term reliability. |
Simple and easy to hook up. No complicated setup, just plug and play. Helpful on-screen message prompts make it a breeze to check that everything is working correctly. Sit back and enjoy! |
Included in the package:
- 1 x HDMI Transmitter module
- 1 x HDMI Receiver module
- 4 x Antennas
- 2 x AC Power Adapter
- 1 x IR input receiver cable
- 1 x IR output blaster cable
- 1 Set of Rubber feet and hook/loop strips
- 1 x User's manual
Responsive Support Team
This product is designed to be easy to use, and comes with an information-packed user's manual. In addition, our technical support team is available to assist with any questions you may have.
General Specifications
- Power Source: DC 5V/2A AC Adapter
- Power Consumption: TX: 7W; RX: 5W
- Electrostatic Protection: IEC61000-4-2 Contact Lvl 3 Air Lvl 3
- Working Temperature: 32~122°F
- Humidity: 0~90%, no condensation
- Weight: TX: 6oz (170g); RX: 6oz (170g)
- Dimensions (TX, RX, no antenna): 5.20” (W) x 0.87” (H) x 3.54” (D)
- HDMI Version 1.3; HDCP Version 1.2
- Formats: 480i/p@60Hz, 576i/p@50Hz, 720p@50/60Hz, 1080i/p@50/60Hz. Audio: PCM Only
- IR Signal Compatibility: 20-60kHz
- Wireless Band: 5GHz, 10.2Gbps data rate
- Wireless Range: 330ft (100M) clear line-of-sight
- Wireless Latency: <200ms
