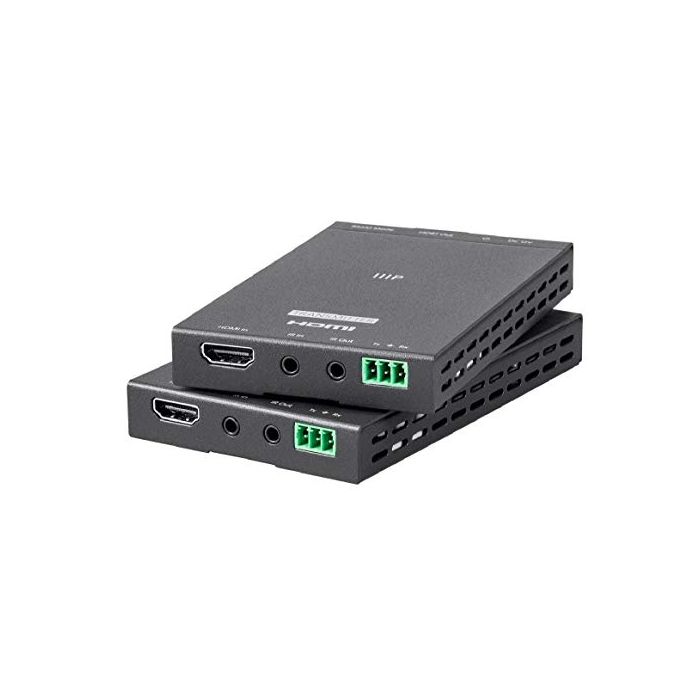

Monoprice Blackbird 4K Pro HD BaseT Extender Kit, IR, 70m with PoC, RS232, HDCP 2.2

In stock

SKU

B06ZZXHV1S

Rating:

82 % of 100

12 Reviews Add Your Review

$99.99

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

From the manufacturer

PoC (Power over Cable)

It supports the Power over Cable (PoC) feature, which uses the Cat6 cable to deliver power to either the transmitter or receiver, so it can be installed without the need for a nearby AC power outlet.

Monoprice Blackbird 4K Pro HDBaseT Extender Kit

IR | 70m with PoC | RS-232 | HDCP 2.2

This Blackbird 4K Pro HDBaseT Extender Kit allows you to extend High Speed HDMI signals using a single Cat6 Ethernet cable. It supports extension of 4K@60Hz video to distances up to 115 feet (35 meters) and 1080p video to distances up to 230 feet (70 meters). It delivers 10.2Gbps bandwidth and is compliant with HDCP 2.2.

HDCP 2.2: This extender kit is compliant with the latest HDCP 2.2 specification, as well as HDCP 1.4.
Available with 4K@60Hz and 1080p@60Hz transmission distances to accommodate your video extension needs.

transmit 4k@60Hz signals up to 115ft and 1080p@60Hz video distances up to 229 feet 70 meters

bidirectional RS-232 IR extension between the transmitter and the receiver enabling remote IR contro


	Blackbird 4K HDBaseT Extender Kit 100m	Blackbird 4K Pro HDBaseT Extender 70m	Blackbird 4K HDBaseT Extender Kit 70m	Blackbird HDBaseT Extender Kit 150m
4K@60Hz Transmission Distance	229 feet (70m)	115 feet (35m)	131 feet (40m)
1080p@60Hz Transmission Distance	328 feet (100m)	220 feet (70m)	229 feet (70m)	492 feet (150m)
HDR Support	✓		✓
Power over Cable	PoH	PoC	PoC	PoC
IR & RS-232 Pass-Through	✓	✓	✓	✓
HDCP 2.2	✓	✓	✓	✓

Product Quick Look

Blackbird 4K Pro DBase Extender Kit, IR, 70m with Pock, RS232, HDCP 2. 2 The Blackbird trade; 4K Pro HDBaseT Extender distributes HDMI signals over a single Cat6 cable to distances up to 70 meters. It supports the Pock feature, eliminating the need for power adapters on the receiver. Features: • Supports HDCP 2. 2 • Supports resolutions up to 4K@60Hz • Transmits 4K video to distances up to 35 meters • Transmits 1080p video to distances up to 70 meters • Supports the Power over Cable (Pock) feature • Supports IR and RS232 extension • IR accessories not included Full Specs • Transmitter Inputs: 1x HDMI, 1x IR (3. 5mm), 1x RS232 • Transmitter Outputs: 1x HDBT (RJ45), 1x IR (3. 5mm) • Receiver Inputs: 1x HDBT (RJ45), 1x IR (3. 5mm), 1x RS232 • Receiver Outputs: 1x HDMI, 1x IR (3. 5mm) • Transmission Standard: DBase • Maximum Bandwidth: 10. 2 Gbps • Maximum Resolution: 4K@60Hz 4: 2: 0 • HDCP Version: 2. 2 • 4K Transmission Distance: 115 feet (35 meters) • 1080p Transmission Distance: 230 feet (70 meters) • Input Power: 12 VDC, 1A • AC Adapter Input Power: 100 ~ 240 VAC, 50/60 Hz • Maximum Power Consumption: 10 watts • Operating Temperature: +14 ~ +122° F (-10 ~ +50° C) • Operating Humidity: 0 ~ 90% RH, noncondensing • Transmitter Dimensions: 4. 7" x 0. 6" x 2. 9" (120 x 16 x 74 mm) • Receiver Dimensions: 4. 7" x 0. 6" x 2. 9" (120 x 16 x 74 mm) • Transmitter Weight: 8. 5 oz. (240g) • Receiver Weight: 8. 5 oz. (240g)
Supports HDCP 2.2
Supports resolutions up to 4K@60Hz
Transmits 4K video to distances up to 35 meters
Transmits 1080p video to distances up to 70 meters
Supports the Power over Cable (PoC) feature

Product Dimensions	8.6 x 7.35 x 3.2 inches
Item Weight	1.74 pounds
Item model number	121609
Date First Available	April 19, 2017
Manufacturer	Monoprice
Country of Origin	China
