MSI Z590 PRO WiFi ProSeries Motherboard (ATX, 11th/10th Gen Intel Core, LGA 1200 Socket, DDR4, PCIe 4, M.2 Slots, USB 3.2 Gen 2, 2.5G LAN, DP/HDMI, Wi-Fi 6E)
From the manufacturer
MSI: For Gamers & Creators
MSI Business & Productivity specializes in home & commercial office computing hardware with a design emphasis on productivity and user comfort.
For business professionals searching for elegant, world class solutions engineered with cutting edge components, premium reliability and refined aesthetics, MSI Business & Productivity offers a broad array of innovative products to ensure a competitive working environment.

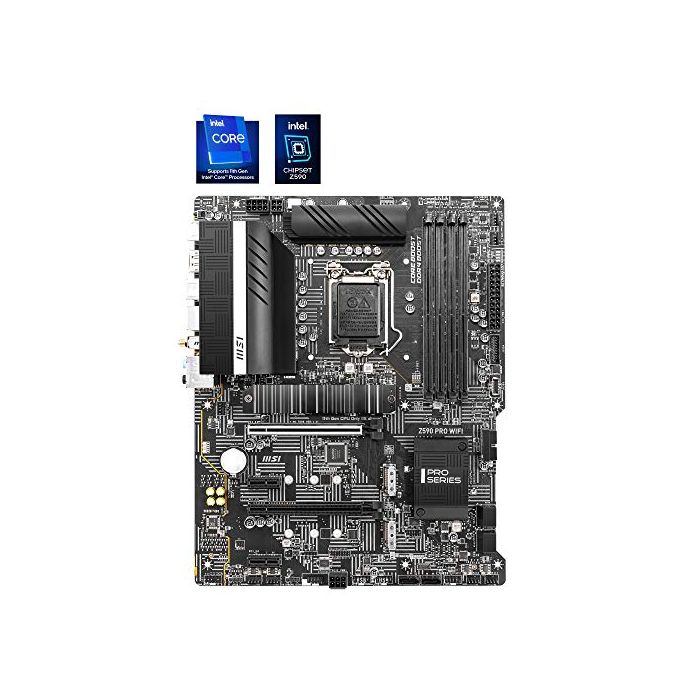

MSI Z590 PRO WIFI Motherboard
Built to Connect
For creative professionals looking to expand their wireless capabilities, the MSI Z590 PRO WIFI offers a premium platform with the capacity to support a broad spectrum of both cutting-edge and legacy hardware. processors and gaming hardware.
- Supports Intel Core 11th & 10th Gen Processors (LGA 1200)
- Lightning Gen4 & Turbo Gen3 M.2 slots with Shield Frozr
- PCI-e 4.0 x16 (CrossFire via PCI-e 3.0 x16)
- 4 DIMMS with DDR4 Boost: Dual Channel (128GB Max. / 5333MHz OC)
- Intel I225-V 2.5G LAN
- Wi-Fi 6E AX210 & Bluetooth 5.2
|
|
|
|
|
|---|---|---|---|
Supports Intel Core 11th Gen ProcessorsThe Z590 PRO WIFI motherboard supports 11th Gen Intel Core, 10th Gen Intel Core, Pentium Gold, and Celeron processors. Form Factor: ATX Socket Type: LGA 1200 Chipset: Intel Z590 |
Integrated CoolingVRM Cooling: Features an extended heatsink and 7W/mK thermal pad. PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability. SSD Cooling: M.2 Shield Frozr prevents thermal throttling. System Cooling: Connect and synchronize cooling with strategically placed pin-headers - including a dedicated pump-fan header. |
Fortified PCI-e 4.0 x16MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference: 1 x PCI-e 4.0/3.0 x16 slot (with Steel Armor) 1 x PCI-e 3.0 x16 slot (CrossFire supported) 2 x PCI-e 3.0 x1 slots |
Wi-Fi 6E & Bluetooth 5.2LAN: An Intel I225-V 2.5Gbps LAN controller delivers premium network capabilities. USB 3.2 Gen 2x2 Type-C: Connect to devices and transfer files at unpredicted rates: 20Gb/s. HD Audio: 7.1-Channel High Definition Audio with Audio Boost. Wi-Fi 6E: Features the latest Wi-Fi 6E AX210 (ultra-low latency, high-bandwidth) & Bluetooth 5.2 technology. |
Cutting-Edge Performance & Excellent Connectivity
|
|
|
|
|
|---|---|---|---|
Gen4 & Gen3 M.2 ConnectorsThe Z590 PRO WIFI motherboard features MSI's latest M.2 slots (Intel Optane supported): * 1 x Gen4 x4 64Gb/s slot * 2 x Gen3 x4 32Gb/s slots *M.2 specifications may vary depending on the CPU installed. |
M.2 Shield FrozrEven the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures. M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance. |
4 x DDR4 Dual Channel (5333 MHz OC)DDR4 Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance. XMP profiles in MSI BIOS are MSI OC LAB tested and can be easily enabled with auto power settings for optimized memory speed and stability. |
Wi-Fi 6E & Bluetooth 5.2LAN: An Intel I225-V 2.5Gbps LAN controller delivers premium network capabilities. USB 3.2 Gen 2x2 Type-C: Connect to devices and transfer files at unpredicted rates: 20Gb/s. HD Audio: 7.1-Channel High Definition Audio with Audio Boost. Wi-Fi 6E: Features the latest Wi-Fi 6E AX210 (ultra-low latency, high-bandwidth) & Bluetooth 5.2 technology. |
|
|
|
|---|---|---|
| Z590-A PRO | Z590 PRO WIFI | |
| Form Factor | ATX | ATX |
| VRM | 12 Duet Rail Power System, 55A DrMOS | 12 Duet Rail Power System, 55A DrMOS |
| DIMM Slots | 4 (5333MHz OC) | 4 (5333MHz OC) |
| PCI-e x16 Slots | 4.0 x 1 / 3.0 x 1 | 4.0 x 1 / 3.0 x 1 |
| M.2 Slots | 4.0 x 1 / 3.0 x 2 | 4.0 x 1 / 3.0 x 2 |
| Audio | 8-Channel (7.1) HD Audio with Audio Boost | 8-Channel (7.1) HD Audio with Audio Boost |
| LAN | Intel I225-V 2.5G LAN | Intel I225-V 2.5G LAN |
| WiFi & Bluetooth | Intel Wi-Fi 6E AX210, Bluetooth 5.2 |
