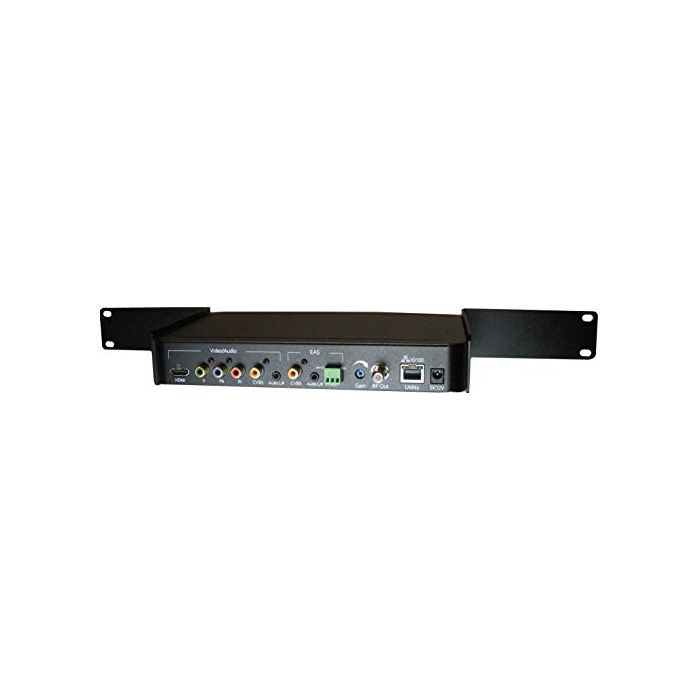

Multicom1080P Component/HDMI Digital 200 Encoder RF Modulator J.83B QAM, ATSC, ISDB-Tb, and DVB-T Output
Product Description
Video Encoders and Modulators
Multicom’s constantly growing line of high-quality Modulators and Encoders has been a primary focus recently. Whether it’s one channel, eight channels, or more - we have the products necessary for your video, voice, data, and wireless needs.
Instead of having a rack full of fixed-channel modulators, you can now have the efficiency, economy and redundancy of agile modulators. Agile modulators gives the ability to change the output channel whenever needed - and Multicom’s affordable agile modulators have come down to such a level that fixed-channel modulators can be a thing of the past. While both encoders are able to output resolutions from 480 up to 1080I/1080P.
The MUL-HDENC-C-100 is compatible with systems in North America and Mexico while the MUL-HDENC-C-200 is compatible with systems in North America, Mexico, and Latin America.
|
|
|
|
|
|---|---|---|---|---|
| MUL-HDENC-C-100 | MUL-HDENC-C-200 | MUL-AMOD750 | MUL-AMOD860 | |
| Video Input Type | Unencrypted HDMI | Unencrypted HDMI / Component / Composite | Composite | Composite |
| Audio Input Type | HDMI Embedded | HDMI Embedded, Analog | Composite | Composite |
| Output Level | +38 dBmV Typical (With 20dB Range Manually Adjustable) | +35dBmV Typical | 55dBmV Typical (adjustable) | 55dBmV Typical (adjustable) |
| Output Type | J.83B QAM 64 / J.83B QAM 256 RF or ATSC (8VSB) | J.83B QAM, ATSC, ISDB-Tb, or DVB-T | RF Output | RF Output |
| Frequency Range | J.83B: 57 - 861 MHz (Ch2 - Ch135), ATSC-8VSB: 57-803 MHz (Ch2 - CH69) | J.83B: 57-861 MHz, DVB-T: 6MHz: CH: 2-69, 57~803MHz 7MHz: CH: 6-9, 9A, 10-12, S11-S45, 21-69 8MHz: CH: E2-E4, X-Z, Z1, Z2, S1-S10, E5-E12, (CH 2-CH 135) ATSC: 57- 803 MHz (CH2 - CH 69) ISDB-Tb: 177-803 Mhz (CH7 - CH 69), S11-S41, E21-E69 | 54 – 750 MHz (Select Ch2 to Ch118) | 54 – 860 MHz (Select Ch2 to Ch135) |
| Rackmount | Requires MUL-HDENC-SHELFKIT-1 for standard 19" rack | 19” Rack Mount Bracket Kit & Wall Mount Accessories Included | Standard 19” rack | Standard 19” rack |
| Closed Captioning | Not Available | Available | Available | Available |
| Emergency Alert System | Not Available | RCA 3.5mm, 5-12VDC & Dry Contact Closure | Not Available | Not Available |
| Audio Compression | MPEG-1 Layer II, MPEG-4 AAC, AC-3 | MPEG-1 Layer II, MPEG-4 AAC, AC-3 | Not Applicable | Not Applicable |
| High-Bandwidth Digital Content Protection | HDCP Protected | HDCP Protected | Not Applicable | Not Applicable |
