Neoteck 4K 60Hz HDMI 2.0 Audio Extractor Support YUV 4:4:4 and HDR, HDMI to HDMI + Optical TOSLINK SPDIF + Analog RCA L/R + 3.5mm, for Gaming PS4 Pro Blu-ray Player HDTV
Product Description
Features：
HDMI 2.0b (18Gbps), HDCP 2.2 compliant
Video resolutions up to 4K@60Hz (YUV444)
Extracts HDMI audio to multi-channel optical (SPDIF) or L/R 3.5mm headphone analog audio
Optical audio supports LPCM 2CH, Dobly Digital 2/5.1CH, DTS 2/5.1CH，Supports HDMI High Bit Rate(HBR) audio pass through
Audio sample rates up to 192kHz
10bits HDR (High Dynamic Range) pass through
|
|
|
|
|---|---|---|
SpecificationsSuppoort HDMI HDCP Version: HDCP 2.2 HDMI Input/Output Resolution: Up to 4K/60fs Support HDMI Video Color Format: 2160P, 10/12 bits, 24/25/30Hz, 2160p, 10/12 bits, 50/60Hz HDMI Audio Format: DTS-HD/Dolby-TrueHD/LPCM7.1/DTS/olby-AC3/DSD SPDIF Digital Audio Formate: Dolby Digital (AC3)/DTS/LPCM Input Output TMDS Signal: 0.5~1.5Vp-p(TTL) Input Output DDC Signal: 5Vp-p(TTL) |
SpecificationsHDMI Input Cable Distance: ≤3m AWG26 HDMI Standard Cable HDMI Output Cable Distance: ≤3m AWG26 HDMI Standard Cable |
SpecificationsDAC sampling frequency: 32~192 KHz DAC bit rate: 16~24 Bit RCA analog output (1KHz@0dB): 1V RMS Signal to noise ratio @0dB(CC1R/ARM): ≥90dB Distortion degree: ≤0.1% Frequency response: 20HZ~20KHz Max Working Current: 400mA Power Adapter Format: AC 100V-240V 50/60HZ,DC 5V/1A |
Please Note:
1. This unit will only pass Dolby Digital/ DTS audio formats, it will NOT decode these formats for the analog output. If using the analog output, make sure your HDMI source is set to PCM audio.
2. When select to 5.1 Channel mode, the spdif out will output 5.1 channel audio depends on whether the input source contains 5.1 channel audio:
a). If it contains, SPDIF OUT interface will output 5.1 channel audio signal while STEREO OUT interface output nothing.
b). If it not contains, SPDIF OUT and AUDIO OUT interface are all output 2 channel audio signal.
3. Not compatible with Netflix and YouTube video websites.
4. Can NOT be used with other converter, such as HDMI to DVI Converter.

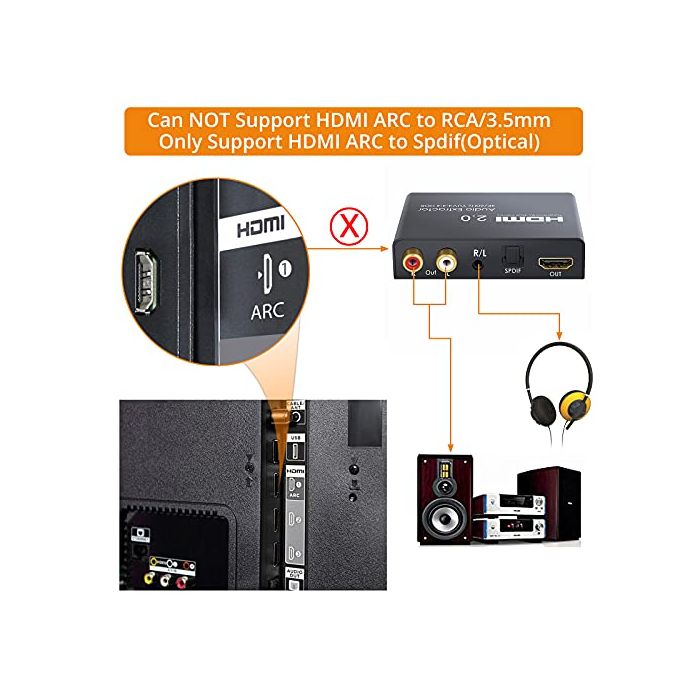

ARC Function Notes:
a. Please sure your HDTV with HDMI(ARC) Port, then connect to ARC Adapter HDMI Output Port.
Your TV HDMI (ARC)--->HDMI Cable --->HDMI Switch (HDMI Output Port) --->HDMI Switch Optical/Coaxial Output to your audio device.
b. ARC function is only available from the Optical Port, 3.5mm headphone port will no sound if you open the ARC.
c. Please open the ARC function on your TV and this ARC converter when you use it.
Package Includes:
1 x HDMI Audio Extractor
1 x Power adapters
1 x User Manual
