PSB Alpha P3 Compact Bookshelf Speaker - Walnut
From the manufacturer
PSB Alpha P3 Black Ash
About PSB
PSB Speakers are engineered in Canada with more than 40 years of advanced acoustic research and design. From the original Beta and legendary Alpha series to PSB’s beautifully designed Imagine Series, every loudspeaker is meticulously tuned and tested at Canada’s national research facilities to deliver the most accurate acoustics under the most demanding of listening conditions.
PSB Alpha P3
Compact Bookshelf Monitor Speaker
The Alpha P3 is a small two-way bookshelf speaker that connects to any stereo or home theatre system to fill the room with powerful, crystal-clear sound. Featuring a custom 4.5” woofer and aluminium dome tweeter that uses a waveguide to perfectly match the low and high frequencies for a smooth transition, the P3 delivers improved directivity and flattens the frequency response for a more natural sound.
- ¾” Black anodized aluminium dome tweeter with front waveguide
- 4” Textured polypropylene woofer with rubber surround

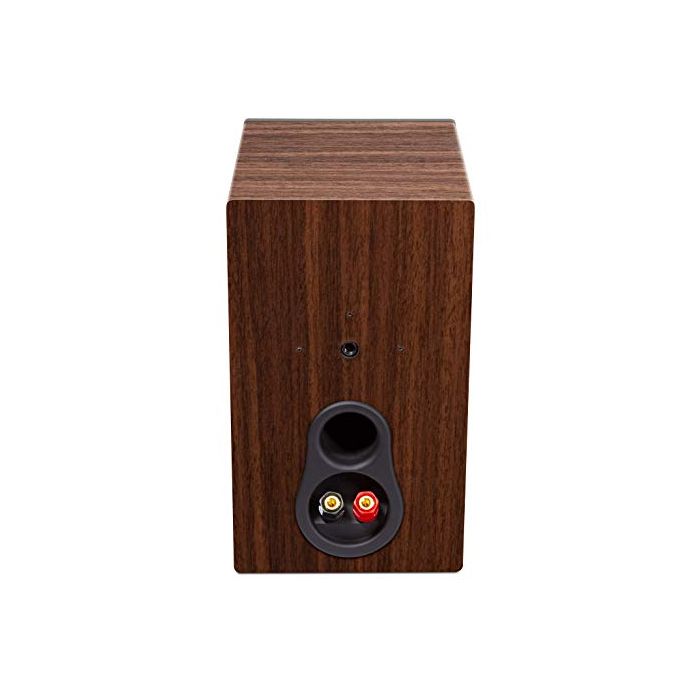

- Bass reflex cabinet design with a rear-firing port
- Acoustically-transparent detachable magnetic grilles
- Five-way gold-plated binding post speaker terminals
- High-quality woodgrain vinyl finish
- Available in Black Ash or Walnut
Hear Beautiful Texture and Detail
All new Alpha Series models employ a ¾” black anodized aluminium dome tweeter that extends the high-frequency response beyond the Alpha’s original measurements and minimizes distortion for a rich, balanced listening experience. A waveguide on the front of the tweeter works to perfect on and off-axis performance while smoothing the response for improved resolution and detail. The ferrofluid cooled tweeter on the P3 has also been precision engineered to sit below the woofer to provide precise stereo imaging at any height.
Powerful Woofer with Dual Layer Voice Coils
At the heart of every good speaker is a great woofer that produces low distortion and high output levels. With the new Alpha Series, the 4.5” woofer employs dual layer voice coils with a very powerful magnet structure and a cone that is made from a special textured polypropylene compound that prevents breakup. With bass reflex loaded through Paul’s original port tube design from the ’70s, the woofer adds back wave energy to extend the bass response and improve efficiency down to 43Hz.
Unique Modular Cabinet Design
The P3 has a unique combination of wall thickness and bracing to control resonances and provide a perfect platform for the driver components. The P3 cabinet’s internal damping material was first used in PSB’s most high-end models, and has now been adopted by the Alphas and positioned precisely for optimum effectiveness. A premium woodgrain vinyl finish and chrome front baffle highlights combine with magnetically attached grilles to provide a rich and timeless design.
|
|
|
|
|
|---|---|---|---|---|
| PSB Alpha P3 Compact Bookshelf Speaker | PSB Alpha P5 Bookshelf Speaker | PSB Alpha C10 Center Channel Speaker | PSB Alpha T20 Tower Speaker | |
| Frequency Response | On Axis @ 0° ± 3dB On Axis @ 0°±1 1/2dB Off Axis @ 30°±3dB LF Cutoff -10dB 57-21,000Hz 67-20,000Hz 67-10,000Hz 43Hz | On Axis @ 0° ± 3dB On Axis @ 0°±1 1/2dB Off Axis @ 30°±3dB LF Cutoff -10dB 55-21,000Hz 65-20,000Hz 65-10,000Hz 37Hz | On Axis @ 0° ± 3dB On Axis @ 0°±1 1/2dB Off Axis @ 30°±3dB LF Cutoff -10dB 55-21,000Hz 65-20,000Hz 65-10,000Hz 37Hz | On Axis @ 0° ± 3dB On Axis @ 0°±1 1/2dB Off Axis @ 30°±3dB LF Cutoff -10dB 36-21,000Hz 54-20,000Hz 54-10,000Hz 28Hz |
| Input Power (Recommended) | 10-80 Watts | 10-90 Watts | 15-120 Watts | 15-120 Watts |
| Input Power (Program) | 60 Watts | 60 Watts | 60 Watts | 60 Watts |
| Tweeter | 3/4” (19mm) Black Anodized Aluminium Dome with Ferrofluid and Neodymium Magnet | 3/4” (19mm) Black Anodized Aluminium Dome with Ferrofluid and Neodymium Magnet | 3/4” (19mm) Black Anodized Aluminium Dome with Ferrofluid and Neodymium Magnet | 3/4” (19mm) Black Anodized Aluminum Dome with Ferrofluid and Neodymium Magnet |
| Woofer | 4” (102mm) Textured Polypropylene Cone with Rubber Surround | 5 1/4” (133mm) Textured Polypropylene Cone with Rubber Surround | 2 x 5 1/4” (133mm) Textured Polypropylene Cone with Rubber Surround | 2 x 5 1/4” (133mm) Textured Polypropylene Cone with Rubber Surround |
| Design Type | Tuned Port Bass Reflex 1 3/8” (35mm) Rear Port | Tuned Port Bass Reflex 2” (49mm) Rear Port | Tuned Port Bass Reflex 2” (49mm) Rear Port | Tuned Port Bass Reflex 2 1/2” (63.5mm) Rear Port |
| Sensitivity | Anechoic Chamber Typical Listening Room 85dB 87dB | Anechoic Chamber Typical Listening Room 87dB 89dB | Anechoic Chamber Typical Listening Room 88dB 90dB | Anechoic Chamber Typical Listening Room 88dB 90dB |
| Size | 5 1/8” x 8 5/8” x 6 7/8” (130 x 220 x 174mm) | 6 3/4” x 11 3/8” x 9 1/2” (170 x 290 x 240mm) | 17 3/4” x 6 3/4” x 9 3/8” (450 x 170 x 243mm) | 6 3/4” x 32 1/2” x 9 3/8” (170 x 825 x 243mm) |
| Net Weight | 4.9lb (2.2kg)/each | 10.15lb (4.6kg)/each | 17lb (7.7kg) | 26.15lb (11.9kg)/each |
