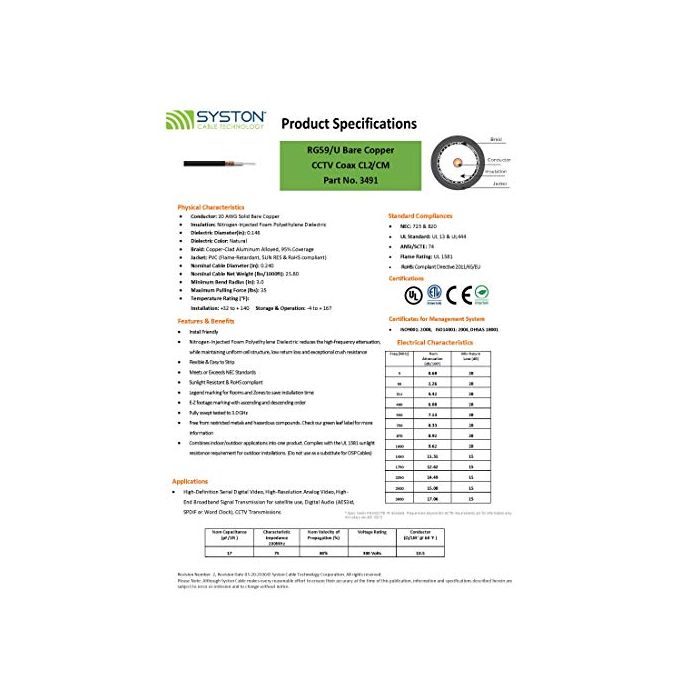

Physical Characteristics: Conductor: 20 AWG Solid Bare Copper Insulation: Nitrogen-Injected Foam Polyethylene Dielectric Dielectric Diameter (in): 0.146 Dielectric Color: Natural Braid: Copper-Clad Aluminum Alloyed, 95% Coverage Jacket: PVC (Flame-Retardant, SUN RES & RoHS compliant) Nominal Cable Diameter (in): 0.240 Nominal Cable Net Weight (lbs/1000ft): 25.80 Minimum Bend Radius (in): 3.0 Maximum Pulling Force (lbs): 35 Temperature Rating (°F): Installation: +32 to + 140 Storage & Operation: -4 to + 167 Certificates for Management System: ISO9001: 2008, ISO14001: 2004, OHSAS 18001 Standard Compliances: NEC: 725 & 820 UL Standard: UL 13 & UL444 ANSI/SCTE: 74 Flame Rating: UL1581 RoHS: Compliant Directive 2011/65/EU Electrical Characteristics: NomCapacitance (pF/1ft ): 17 Characteristic Impedance 200MHz: 75 Nom Velocity of Propagation (%): 84% Voltage Rating: 300 Volts Conductor (Ω/1M’ @ 20 °F): 10.5
Applications: High-Definition Serial Digital Video, High-Resolution Analog Video, High-End Broadband Signal, Transmission for satellite use, Digital Audio
Install Friendly. Flexible & Easy to Strip.
Meets or Exceeds NEC Standards. Sunlight Resistant & RoHS Compliant.
Fully swept tested to 3.0 GHz. Skin-Foam-Skin Dielectric reduces the high-frequency attenuation.
Combines indoor/outdoor applications into one product with the added feature of 720-hour sunlight resistance.
