SATA/IDE to USB 3.0 Adapter, Unitek IDE Hard Drive Adapter for Universal 2.5"/3.5" Inch IDE and SATA External HDD/SSD, Support 10TB

Product Description

Specifications:

Interface : 2 IDE connectors (40pin and 44pin) + 1 SATA connector
Cable Length : 2.62 ft /31.5in /80cm
Product Size : 3.8*2.7*0.7 in / 97*70*17mm
Supported Hard Drives : 2.5"/3.5" SATA HDD and SSD, 2.5"/3.5" IDE up to 10TB max and DVD-ROM, CD-ROM, CD-RW, DVD-RW, DVD + RW Optical Drive.
Operating system : Windows XP/Vista/7/8/10, Mac OS and Linux.

Features:

Automatic Sleep Mode after 30 minutes of inactivity; LED light shows Power and Activity status; Read it three hard drives simultaneously (If not, you will need to set the 3.5'' IDE to be the slave drive based on the instruction on the hard drive).

Since 2006, Unitek has designed and manufactured human friendly tech products and accessories for more than 60 countries. We build products to cover the many dimensions of human experience. Friendly in our relationships, our products, and we strive to make the world more friendly each day.

Unitek IDE/SATA to USB 3.0 Adapter

Package Contents

- SATA/IDE to USB 3.0 Hard Drive Adapter * 1
- 4 PIN Power Cable * 1
- User Manual * 1

Hot Swap & Plug and play.
Read it three hard drives simultaneously


	IDE/ SATA Adapter	IDE/ SATA Adapter	M.2 NVMe SSD Enclosure	M.2 NVMe SSD Enclosure	Dual SATA Docking	Dual SATA Mini Docking
IDE Interface	2.5" & 3.5"	2.5" & 3.5"	×	×	×	×
SATA Interface	2.5" or 3.5"	2.5" or 3.5"	×	×	2.5" & 3.5"	2.5" & 3.5"
USB Interface	USB 3.0	USB 3.0	USB 3.0/USB C	USB 3.0/USB C	USB 3.0	USB 3.0
UASP	×	×	✓	✓	✓	✓
Maximum Speed	5 Gbps	5 Gbps	10 Gbps	10 Gbps	6 Gbps	6 Gbps
Simultaneous Reading and Writing	3 Hard Drives	3 Hard Drives	1 M.2 NVMe SSD M-Key	1 M.2 NVMe SSD M-Key	2 Hard Drives	2 Hard Drives
Power Adapter	12V 2A	12V 2A	×	×	12V 3A	12V 3A
Support Clone Function	×	×	×	×	✓	✓
Need Driver	×	×	×	×	×	×
Support Optical Drive	✓	✓	×	×	×	×

Product Quick Look

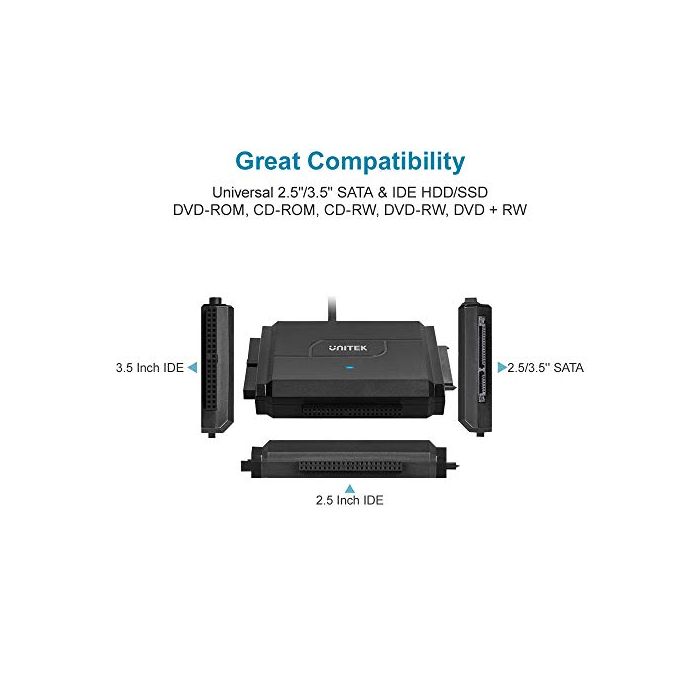

【Universal IDE Hard Drive Adapter】Dual-Head IDE Connector (40pin and 44pin) plus one SATA II Connector. Support SATA 2.5"/3.5" HDD up to 10 TB, IDE 2.5"/3.5" HDD, DVD-ROM, CD-ROM, CD-RW, DVD-RW, DVD + RW Optical Drive. Allowed to operate three hard disk drives simultaneously.
【Stable Power Supply】Included 12V 2A power cable. 4PIN Power Cable is designed for 3.5’’ IDE drive.
【SuperSpeed USB 3.0】Data transfer rates up to 5Gbps, backward compatible with USB 2.0/1.1. Support Windows XP/Vista/7/8/10 and Mac OS.
【Driver Free】Plug and play. Automatic Sleep Mode after 30 minutes of inactivity. Support Hot Swapping. On/Off Switch for HDD protection. LED light shows Power and Activity status.
【What We Offer】SATA/IDE to USB 3.0 Adapter Hard Drive Cable x1, 12V 2A Power Adapter x1, 4PIN Power Cable x1; 24h-friendly customer service and email support.

Number of USB 3.0 Ports	‎1
Brand	‎Unitek
Item model number	‎Y-3324
Hardware Platform	‎PC; Mac;UNI;Linux
Operating System	‎Windows 7/8/10 Mac OS
Item Weight	‎7.2 ounces
Product Dimensions	‎3.8 x 0.7 x 2.75 inches
Item Dimensions LxWxH	‎3.8 x 0.7 x 2.75 inches
Color	‎Black
Power Source	‎DC
Manufacturer	‎Ocean Technology LLC
Is Discontinued By Manufacturer	‎No
Date First Available	‎January 18, 2017
