Feature: 7 Inch High Definition TFT LCD Screen(1024*600) Fully DVB-S/S2,T/T2/C, MPEG-2/MPEG-4 compliant MPEG-2/MPEG-4 H.264 Hardware decoding Supports scan of Auto,Manual,NIT(DVB-S/S2) Supports scan of blind (DVB-S/S2/C) Supports Constellation analyzer Supports Spectrum analyzer Supports for multiple CH/TP detection Supports Alarm for Locking Signal Auto Calculate Angle of AZ,EL Supports DISEQC 1.0/1.1/1.2 ,0/22khz Tone Stereo pairs of speakers Supports both AV IN/OUT Supports HDMI IN/OUT out and AV in Supports the DC12V output Electronic compass LNB,ANT,DC12V short protect The built-in flashlight Optical power detection 7.4V/5000mAh Li-ion Battery Independent battery charging power Software upgrade via USB port Specification Transmission Standards:DVB-S2/S,DVB-T/T2,DVB-C,MPEG-2,MPEG-4,H.264/H.265(8 Bit, not support 10 Bit) Satellite Input/Demodulation Connector Type:F Type Input Frequency:950 to 2150 MHz Signal Input Level:-65 to-25 dBm Band Switch Control:22KHz LNB Supply:13V/18V, Imax 400mA Demodulation Type:QPSK,8PSK,16APSK Symbol Rate:2< Rs< 45Mband(SCPC/MCPC) DVB-T/T2/C Input/Demodulation Connector Type:Female Type Input Frequency:48 to 862 MHz Signal Input Level:-79.5dBm (MAX) ANT Supply: 5V,12V/24V Imax 100mA Demodulation Type: OPSK,16PAM,64QAM,256QAM Size(WxDxH): 250mmx156mmx40mm Net Weight:1Kg Package List: 1xWS-6980 DVB-S2/C/T2 Combo HD Satellite Finder Meter 1x12V Car charger cable 1x12V Power Charger 1xCarrying case 1xNeck Strap 1xAV cable 1xUser Manual (CD)

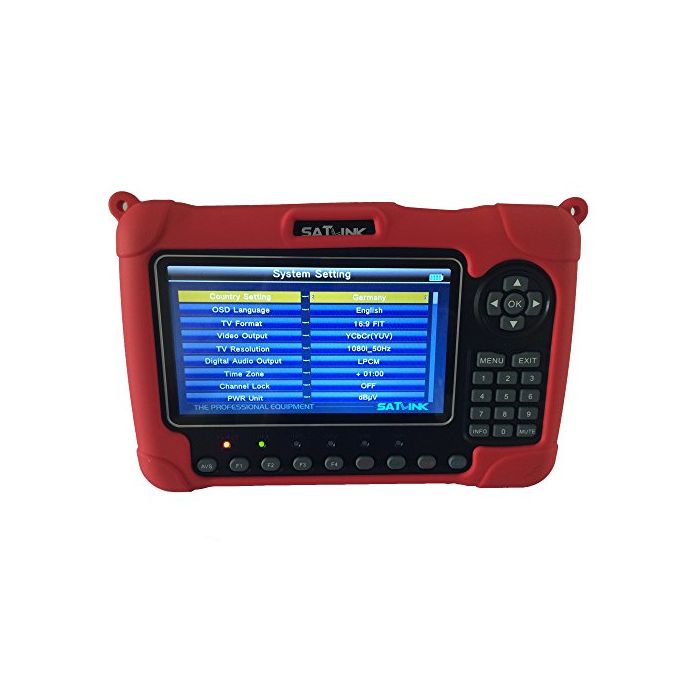

WS-6980 is a DVB-S/S2/T/T2/C and MPEG-2/4 H.264/h.265 (Just support 8 Bit, not suppport 10 Bit) compliant handheld combo meter. With its compact size, light weight, intuitive user's interface, long battery operational hours and rich feature set, the meter provides all functions needed for installation and verification of digital Satellite TV service, antenna signal and cable signal to residential homes or multi-dwelling unit. Currently, WS-6980 can only support 1080P and cannot support 4K.
7 Inch High Definition TFT LCD Screen(1024*600) .Fully DVB-S/S2,T/T2/C, MPEG-2/MPEG－4 compliant, MPEG-2 / MPEG－4 H.264 Hardware decoding.
Supports scan of Auto, Manual ,NIT(DVB-S/S2) ; Supports scan of blind (DVB-S/S2/C) ; Supports Constellation analyzer ; Supports Spectrum analyzer ; Supports for multiple CH/TP detection; Supports Alarm for Locking Signal.
Auto Calculate Angle of AZ ,EL ; Supports DISEQC 1.0/1.1/1.2 ,0/22khz Tone; Stereo pairs of speakers; Supports both AV IN/OUT; Supports HDMI IN/OUT out and AV in ; Supports the DC12V output.
Electronic compass ; LNB, ANT, DC12V short protect ; The built-in flashlight ; Optical power detection ; 7.4V/5000mAh Li-ion Battery; Independent battery charging power. Software upgrade via USB port,.
