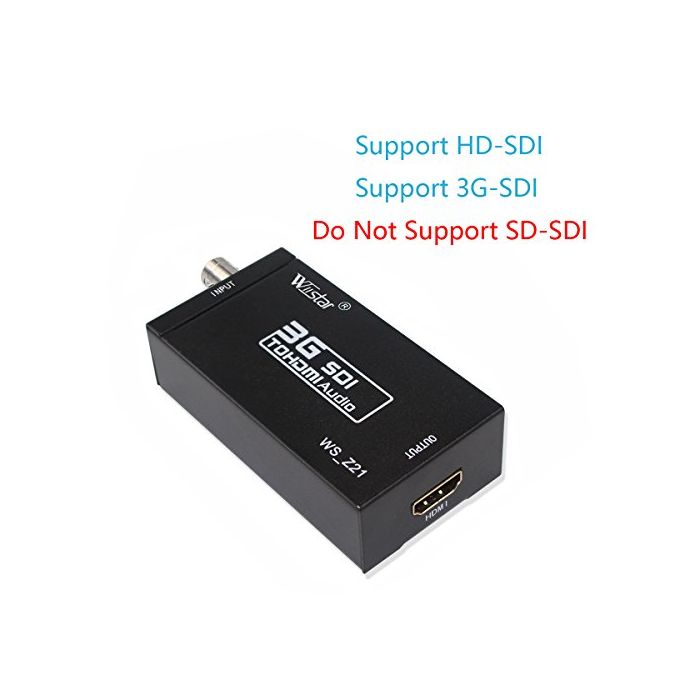

Introduction: This SDI to HDMI converter can be used in many areas,the SDI converter has been widely used in Broadcast television, outdoor large-screen display system, multimedia conference system, command and control center, traffic intelligence, etc. Specification: Power Supply: DC 5V Power Consumption (Max): 5W Input port:1*SDI(BNC) (HD/3G-SDI) Output port:1*HDMI SDI Transmission Rates: 2.970 Gbit/s and 2.970/1.001 Gbit/s. In/Output Resolution: 720p,50/59.94,60, 1080i,50/59.94/60 1080p,23.97/24/25/29.97/30/50/59.94/60. Equalized and re-clocked loop output Integrated audio de-embedder for a maximum of 8 channel, 48 kHz audio. Dimension(mm): 95(L) x 45(W) x 22 (H) Net Weight(g): 95 NOTE:This SDI to HDMI converter does NOT support SD-SDI.The BNC only support digital signal,it is SDI signal,but not BNC analog signal,not RF signal. Package Contents: 1*SDI BNC to HDMI converter 1*US Power Adapter 1*User Manual
