SIIG 1x8 HDMI 4K @60Hz HDR Splitter W/ EDID Management | YUV 4:4:4 8-Bit | YUV 4:2:0 10-Bit | HDMI 2.0, HDCP 2.2, 18Gbps | Auto Scaling, Low Heat, Cascadable, Firmware Upgradable | 8 Port 1 in 8 Out
Product Description
HDMI Splitter 1 in 8 Out
High Quality Auto Scaling Splitter Works Right Out of the Box
About us
Since 1985, SIIG Inc. has led the way in creating IT and AV connectivity solutions you can trust. Built on core values of professional integrity with customer as the focus point, our company is committed to providing service, support, and product solutions that elevate your AV and IT user experience. As our 30+ year legacy continues, our team will contribute insights and add unique value to various industry markets on how people can better connect with technology.

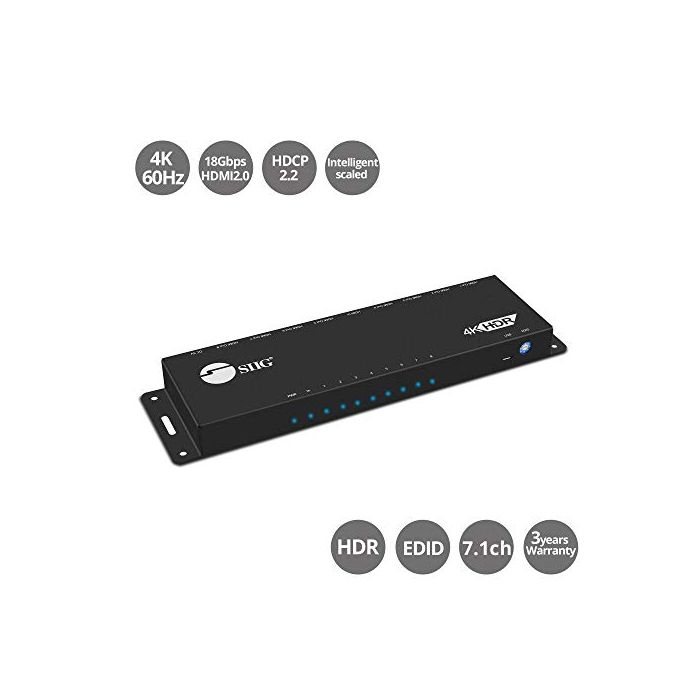

SIIG 1x8 HDMI 4K @60Hz HDR Splitter
1 Source To 8 Displays
Distributes HDMI video and audio from a single source device to up to 8 HDMI displays simultaneously while maintaining signal quality. This 8-Port splitter is great for gyms, schools, sports bars, restaurants, lecture halls & more!
- 1x2 version of splitter: Search ASIN B07BVWKDJP
- 1x4 version of splitter: Search ASIN B07BX8JWV8
Features
- Distribute 4K HDMI video and audio from a single source device to up to 8 HDMI displays simultaneously
- Video resolution support up to 4K @60Hz (YUV 4:4:4 8-bit), HDR 4K @60Hz (YUV 4:2:0 10bit), 3D, xvYCC, x.v.Color & Deep Color
- Compliant with HDMI 2.0a, HDCP 2.2/1.4 with 18Gbps bandwidth
- Supports Dolby Digital, DTS-HD, and Dolby TrueHD audio
- Easy to cascade multiple splitters for more displays, and supports up to 10 layers
- Sturdy metal housing provides excellent heat dissipation, durability, and minimizes EMI/RFI noise interference
Intelligent Downscaling
- Detects and configures the video resolution automatically according to the capabilities of each connected monitor. Supports simultaneous 4K and 1080P output.
- Works great with Elgato! Enjoy playing in 4K and recording in 1080p. See limitations for more information.
- Use different resolution monitors with one splitter. No need to worry about having displays with the same specs.
|
|
|
|
|
|---|---|---|---|
Indulge in HDR10-bit High Dynamic Range (HDR) provides a increased level of contrast between light and dark images to create a more vivid image. HDR truly takes 4K to the next level. You need to see it to believe it!NOTE: This Splitter will not give you HDR picture! An HDR source, display, and Premium High Speed HDMI cables are needed to obtain HDR video quality. |
Limitations For 4K Downscaling
|
Compatible With Many Devices
|
Package Contents
|
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| CE-H22Y11-S1 | CE-H23L11-S1 | CE-H22L12-S1 | CE-H23D11-S1 | CE-H21Q11-S1 | CE-H24Q11-S1 | |
| Outputs | 4 | 4 | 4 | 8 | 10 | 16 |
| Max Resolution | 4K@60Hz (YUV 4: 4: 4 8-bit) & 4K@60Hz (YUV 4: 2: 0 10-bit) | 4K@60Hz (YUV 4: 4: 4 8-bit) & 4K@60Hz (YUV 4: 2: 0 10-bit) | 4K@60Hz (YUV 4: 4: 4 8-bit) & 4K@60Hz (YUV 4: 2: 0 10-bit) | 4K@60Hz (YUV 4: 4: 4 8-bit) & 4K@60Hz (YUV 4: 2: 0 10-bit) | 4K@30Hz | 4K@30Hz |
| HDMI | 2.0 | 2.0 | 2.0 | 2.0 | 1.4 | 1.4 |
| HDCP | 2.2 | 2.2 | 2.2 | 2.2 | 1.4 | 1.4 |
| HDR | ✓ | ✓ | ✓ | ✓ | ||
| 3D | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Mixed Resolution Output | 4K & 1080p | 4K & 1080p | None | 4K & 1080p | None | None |
| EDID | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Audio | Dolby, DTS, & LPCM Formats | Dolby, DTS, & LPCM Formats | Dolby, DTS, & LPCM Formats | Dolby, DTS, & LPCM Formats | Standard, DSD and HD (HBR) | Dolby, DTS, DSD, AC3, & LPCM Formats |
| Other Sizes for this Model | 2-Port & 8-Port | 2-Port | 2-Port | 2-Port & 4-Port | None | None |
