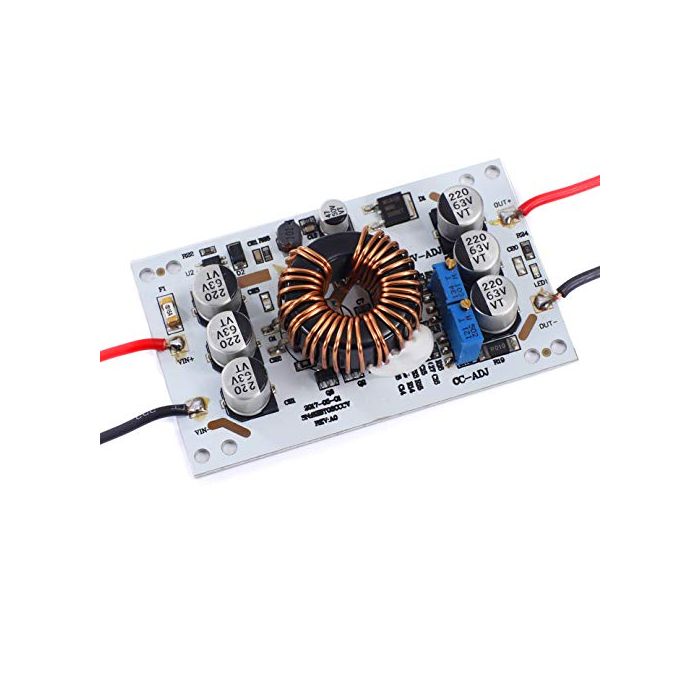

Teyleten Robot DC-DC 10V-60V to 12-60V Boost Converter Adjustable 600W 10A Aluminum Plate Step Up Constant Current Power Supply Module Led Driver for Arduino
Input voltage: DC10V-60V Input stream: 10 (MAX) Inactive working current: 10mA (12V liters 20V, the output voltage, the more Gao Jing and too current will increase) Output current: 10A MAX more than 6A please strengthen the heat dissipation (related to the input and output pressure difference, the greater the pressure difference, the smaller the output flow). Output: = input voltage *10A, such as: input 12V*10A=120W, input 24V*10A=240W, Enter 36V*10A=1360W, enter 60V*10A=600W, Working temperature: -40 - +85 degree (please strengthen heat dissipation when the ambient temperature is too heights) Operative frequency: 150KHz Conversion efficiency: 92%-96% (efficiency and input, output voltage, flow, pressure difference) Output voltage regulating: Clockwise adjustment of the CC-ADJ potentiometer around 20 circles, the output current set to the minimum, then LED, CC-ADJ potentiometer to your required current. For battery charging, the battery is fully discharged, the output received again, adjusting CC-ADJ to the current you need, (for charging for the use of a stagnant battery transfer is allowed because the battery remaining power increasing, the charging current is small.) Please do not adjust the current by short circuit. The circuit structure of the boost module can not be adjusted by forgetful circuit. Package included: 1 x 600w boost constant stream module
[module properties]: not isolated boost module (BOOST)
[input current]: 10 (MAX)
[static working current]: 10mA (12V liters 20V, the output voltage, the more Gao Jing and too current will increase)
[output voltage]: 12-60V continuously adjustable (Default output 19V shipmentIf any other voltage is required, please explain to the cabinet. )
[Output current]: 10A MAX more than 6A please strengthen the heat dissipation (related to the input and output pressure difference, the greater the pressure difference, the smaller the output current).
[constant current range]: 0.2-10A
[output]: = input voltage *10A, such as: input 12V*10A=120W, input 24V*10A=240W, Enter 36V*10A=1360W, enter 60V*10A=600W,
