Yottamaster 5 Bay RAID External Hard Drive Enclosure 2.5" 3.5" USB3.0 to SATA HDD SSD Enclosure,Support 90TB & RAID 0/1/5/10/JBOD RAID Mode Hard Drive RAID Storage for NAS Expansion[FS5RU3]

In stock
SKU
B083LHBKWJ
Be the first to review this product
$269.99
Add to Wish List Add to Compare

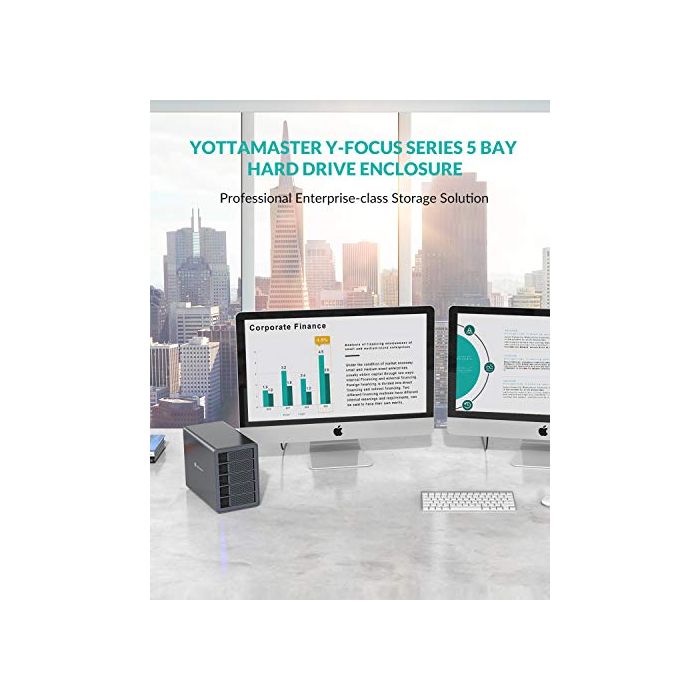

main product photo

Product Description

500

Technical Information

Dimensions and Weight: L x W x H: 26.5 x 13.7 x 20 cm, 10.43 x 5.39 x 7.87 inch. Weight: 4.16kg / 146.74 oz / 9.17 lb.

Interface and Data Cable: USB3.1 GEN1 Type-B 5Gbps. Type-A to Type-B (1m).

Fan and Voltage: 80mm Silent fan (12V, 2PIN). 150W Power Supply Inside.

HDD/SSD Capacity: Support 2.5"/3.5" SATA HDD/SSD. Support up to 18TB, 90TB in total.

RAID Array: Support RAID 0/1/3/5/10, SPAN, Normal. (Setting two RAID modes at the same time is not supported.)

Sleep mode cancel: Download our firmware or use the third-party software, like Amphetamine/KeepAliveHD/Prevent Disk Sleep.

7 RAID modes optimized for every environment, the RAID choice is all yours!

RAID1 You can mirror the drives with RAID 1 as a reliable backup for your important data;
RAID0 You can stripe the drives with RAID 0 for optimal performance and maximum speed;
RAID3 Or you could instead choose RAID 3 provides better data security in environments where continuous long files (like video editing files) are to be read;
RAID5 Provide complete data protection against disk failure while providing excellent speed and capacity. This is perfect for when you want to use a single storage products for both editing and backup;
RAID10 Combines data security of RAID 1 with high-speed read and write of RAID 0.
SPAN Or use SPAN to combine the drives for extra large storage capacities;
Normal Allows you to see and use each disk independently. With five working days a week you can assign each disk to a daily backup to see and use each disk independently.

How to Set RAID Mode?

Step1 Power the enclosure off. Toggle the RAID control switch to the "Normal" (PM Mode).
Step2 Press and hold the Set button.While holding the Set button then press and release the Power button to turn it on;As it turns on so you’ll hear one beep.Keep holding the Set button until you hear a second beep.
Step3 Power the enclosure off.
Step4 Set the dip switches to the pattern matching your chosen configuration.
Step5 Press the power button (while holding the Set button). Wait for second beep.(Same as step 2).

Troubleshooting Guide

Q: How do i know if one of the hard drive is failed?

If one of the drives is damaged/failed, the corresponding indicator will turn red and the enclosure will make a warning sound(beep).

Q: How to Replace A Hard Drive?

For detailed steps, please download the Troubleshooting Guide (PDF) at Product Guides and Documents below.

Q: How to add a new hard drive into the enclosure?

For detailed steps, please download the Troubleshooting Guide (PDF) at Product Guides and Documents below.

Q: Can I connect the device to the computer through a hub?

We recommend that you connect the device directly to the computer, as the connection may be unstable through a hub.

Q: Can the sleep mode be cancelled?

Yes. For detailed steps, please download the Troubleshooting Guide (PDF) at Product Guides and Documents below.

Q: What are the specification of the fan?

The diameter is 80mm, the voltage is 12V, and there is no current limit. 2 PIN.

1 1 2 1 1 1
Get it Now Get it Now Get it Now Get it Now Get it Now Get it Now
Ideal for Small&Medium-sized Enterprise NAS Expansion / Small&Medium-sized Enterprise NAS Expansion / Small&Medium-sized Enterprise PC DIY Experts and Enthusiastic gamers Individuals & Family Individuals & Family
RAID Mode RAID0,RAID1,SPAN,PM / RAID 0,1,3,5,10, SPAN，CLONE,Normal RAID 0,1,3,5,10, SPAN，CLONE,Normal RAID 0,1,3,5,10, SPAN，CLONE,Normal RAID 0,1,3,5,10, SPAN，CLONE,Normal
Interface USB3.0 Type-B USB3.0 Type-B USB3.0 Type-B USB3.0 Type-B USB3.0 Type-B USB 3.1 Type-C
Transfer Rate 5Gbps 5Gbps 5Gbps 5Gbps 5Gbps 5Gbps
Max. number of HDDs/SSDs 2 X 2.5"/3.5"SATA HDD/SSD 4 X 2.5"/3.5"SATA HDD/SSD 5 X 2.5"/3.5"SATA HDD/SSD 5 X 2.5"/3.5"SATA HDD/SSD 5 X 2.5"/3.5"SATA HDD/SSD 4 X 2.5"/3.5"SATA HDD/SSD
Support Capacity 32TB Max 72TB Max 90TB Max 90TB Max 64TB Max 64TB Max
Fan 80mm Slient Fan 80mm Slient Fan 80mm Slient Fan 80mm Slient RGB Fan 80mm Slient Fan 80mm Slient Fan
Installation Lightly Press Left,Removable Metal Trays, Screws Fixed the HDD/SSD Lightly Press Left,Removable Metal Trays, Screws Fixed the HDD/SSD Lightly Press Left,Removable Metal Trays, Screws Fixed the HDD/SSD Lightly Press Left,Removable Metal Trays, Screws Fixed the HDD/SSD One Push Design,Removable Plastic Trays, Screws Fixed the HDD/SSD One Push Design,Removable Plastic Trays, Screws Fixed the HDD/SSD
Power Supply Adapter 12V4A Build-in 150W Build-in 150W Build-in 150W Adapter 12V/6.5A Adapter 12V/6.5A
Support System Windows / Mac /Linux Windows / Mac /Linux Windows / Mac /Linux Windows / Mac /Linux Windows / Mac /Linux Windows / Mac /Linux

Product Quick Look

  • 【90TB,Enterprise-class Storage Capacity】 This 5 bay hard drive Case supports 5 hard drives with a max. capacity of 90TB(18TB for single disk).Great for video editing, photo backup, storage of R&D technical documents, archival backup, music libraries, financial records, storage of video surveillance recordings and corporate data storage.With 5 indicator lights to monitor the operating status of each hard drive. Plug-and-play hot swapping.
  • 【Full RAID function, Flexible Storage Solution】 Yottamaster 5 Bay RAID HDD enclosure is the ultimate storage solution for demanding video workflows on location and in the studio.Supports RAID 0/1/5/10 / JBOD / CLONE/Normal RAID modes; Manage massive amounts of media from multiple cameras on location or in the studio with up to 80TB of RAID storage in one system.
  • 【For 2.5"/3.5" HDD & SSD】 Yottamaster 5 bay hdd enclosure designed for both 2.5" SSDs where speed is the priority and for 3.5" HDDs when it's important to maximize the storage capacity.The removable aluminum trays allow for easy installation and replacement of the drives.Your hard drives can be firmly fixed on the tray by provided screws,which can effectively protect your hdds from shock and interface damage.
  • 【80mm Silent Fan Inside】 The 5 Bay USB 3.0 SATA hard drive enclosure is all Aluminum design. Built- in 80 mm silent fan; With front and rear Meteor cooling holes. An ultra durable aluminum casing provides efficient heat dissipation, plus an extra 80mm rear fan accelerate air convection and keeps your drives cool during long hours of operation.
  • 【5Gbps Transfer Rate】 This 5 bay hard drive enclosure adopt SATA III protocol,Featuring a versatile USB 3.0 interface with a transfer speed up to 5Gbps(MAX)to meet the needs of the flexible storage for demanding workflows.Compatible with most Windows,Linux and Mac systems. meanwhile supported 10mins Intelligent Sleep(Note: The Auto-sleep time can be adjusted/canceled.)
Product Dimensions 10.43 x 5.39 x 7.87 inches
Item Weight 10.39 pounds
Item model number 5 Bay RAID USB3.0
Date First Available January 22, 2020
Manufacturer Yottamaster
Country of Origin China
